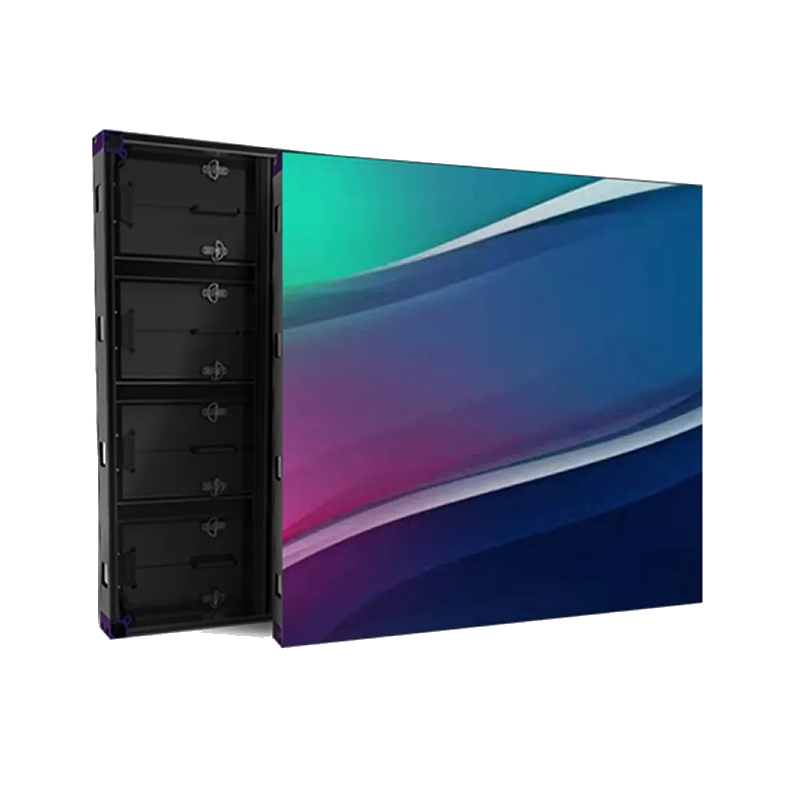

HS Series outdoor fixed LED display - diamond collection, high brightness, waterproof and high-temperature durability. Thin, light cabinet by Shenzhen Topstar.

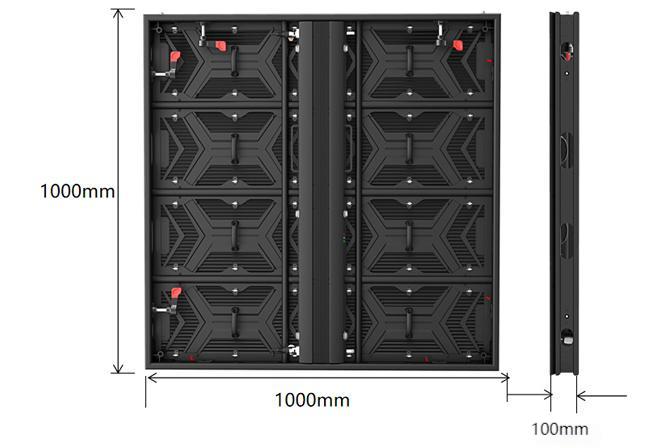

The standard cabinet size is 1,000x1,000mm and the depth is only 100mm.
The thin panel can minimize installation space and also save transportationcosts .

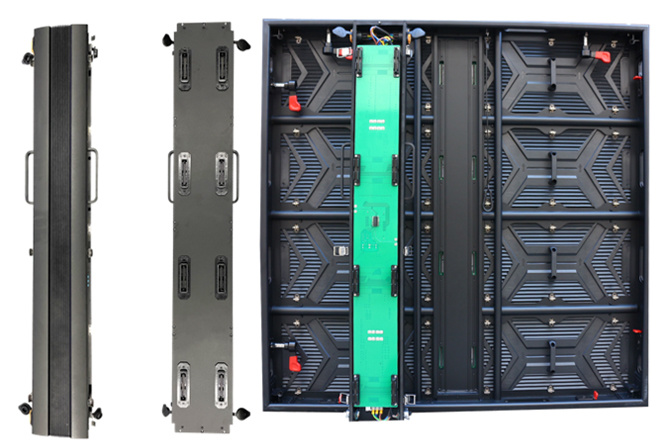

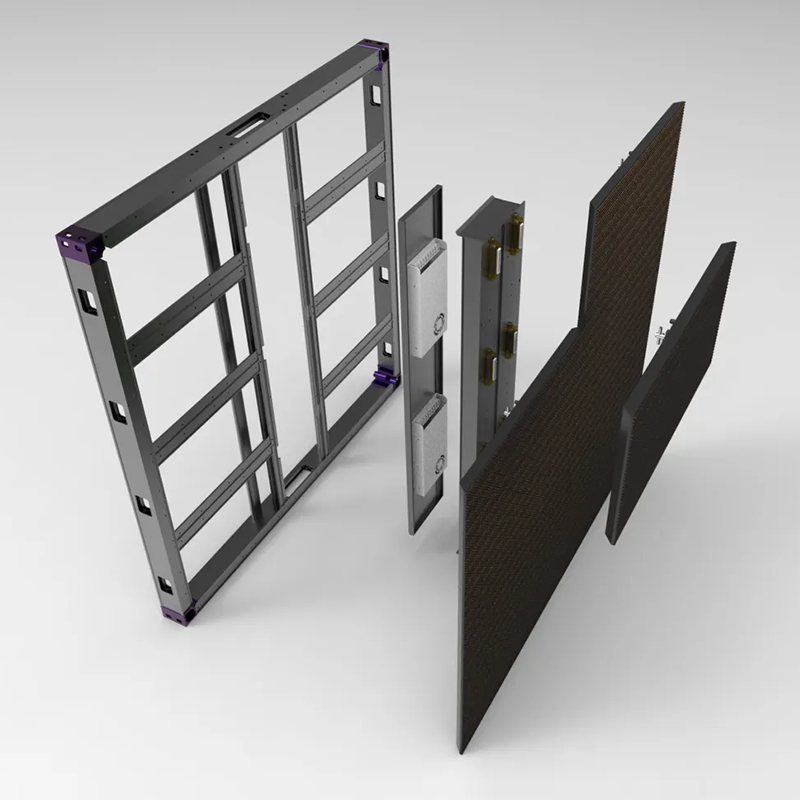

The receiving card/hub card/power supply are all integrated into a singlepower box.
The integrated power box can be removed from the front andbackfor easy installation and maintenance.

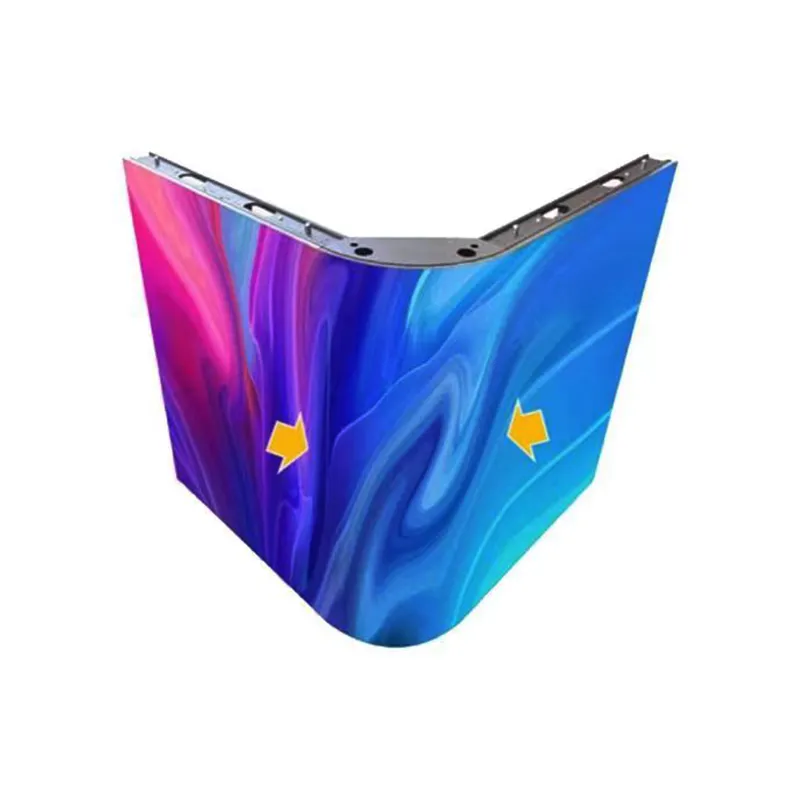

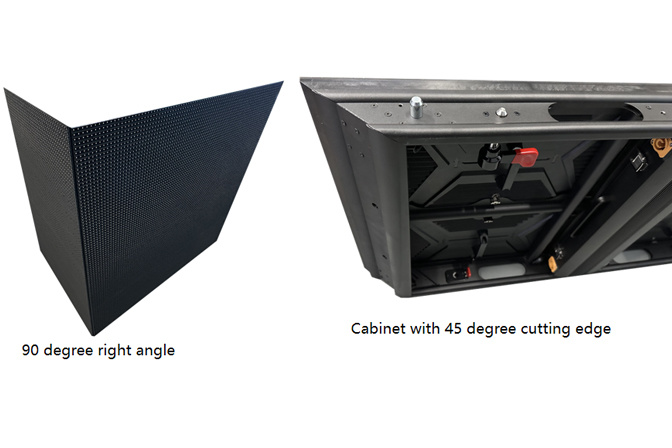

El panel est¡ndar puede cortar 45 eges del grado para hacer el anle dere.
cho de 90grados para la exhibición de la forma de L o la exhibición de laforma del pilar del squre.

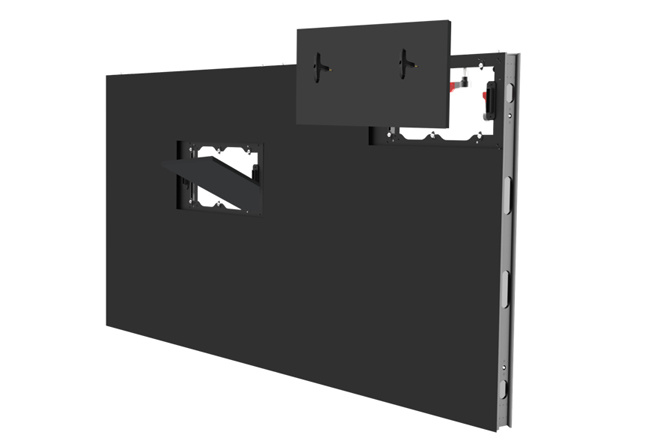

The LED module is accessible from the front/rear side,
making it easier toinstall and maintain. You can change modules in seconds to save laborcosts and time.

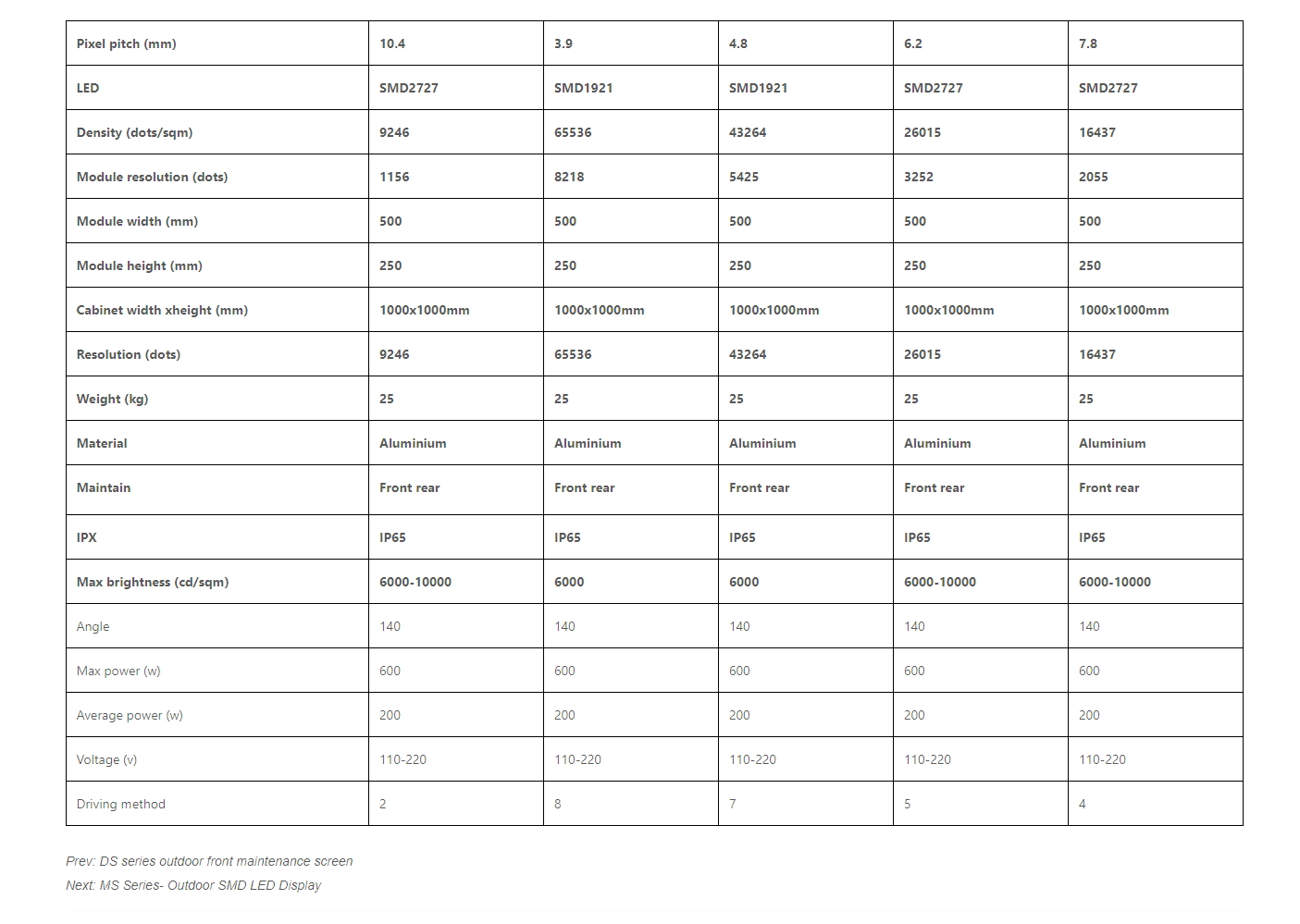

Technical Parameter
